PackageSC
Current18uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC803-29D4VC3-TR technical specifications.
General
Package/Case
SC
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3.05V
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
4.5uA
Packaging
Tape and Reel
Reset
Active Low
Reset Timeout
1.12s
RoHS Compliant
Yes
Supply Current
18uA
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Microchip MIC803-29D4VC3-TR Datasheet
Download the complete datasheet for Microchip MIC803-29D4VC3-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

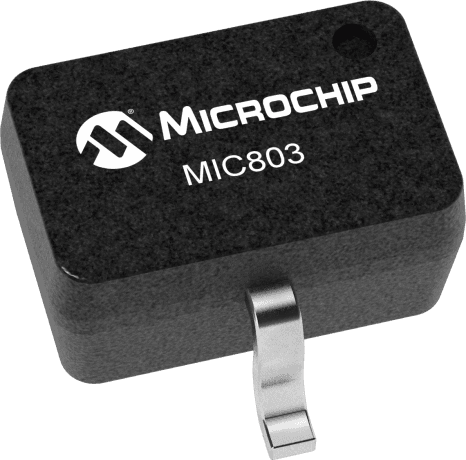

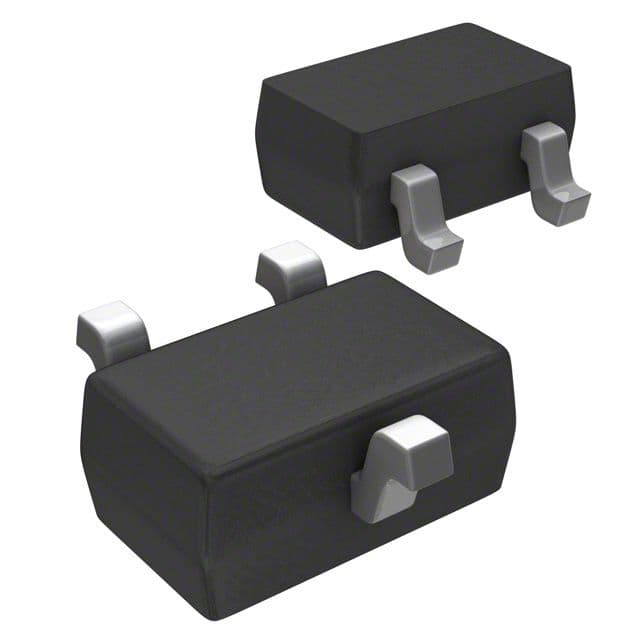

Product Images
