Single-channel comparator IC featuring a 5.5V maximum supply voltage and 1.5V minimum supply voltage. This surface mount component offers a 20mV hysteresis and a 20mA output current. Operating within a -40°C to 85°C temperature range, it utilizes BICMOS technology and provides a 12µs response time. Packaged in a 5-pin SC-70 for tape and reel distribution.
PackageSC
Current3uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC842LYC5-TR technical specifications.
General
Package/Case
SC
Hysteresis
20mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10nA
Max Supply Voltage
5.5V
Min Supply Voltage
1.5V
Mount
Surface Mount
Natural Thermal Resistance
256.5°C/W
Number of Channels
1
Number of Elements
1
Output Current
20mA
Output Current per Channel
20mA
Output Type
PUSH-PULL
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
12us
Quiescent Current
3uA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
12us
RoHS Compliant
Yes
Series
Teeny™
Supply Current
3uA
Technology
BICMOS
Turn-On Delay Time
50us
Compliance
RoHS
Compliant
Datasheet
Microchip MIC842LYC5-TR Datasheet
Download the complete datasheet for Microchip MIC842LYC5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

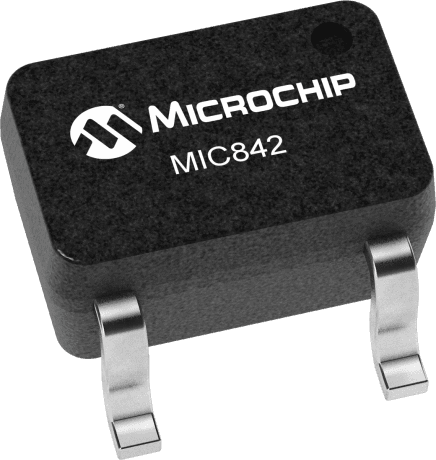

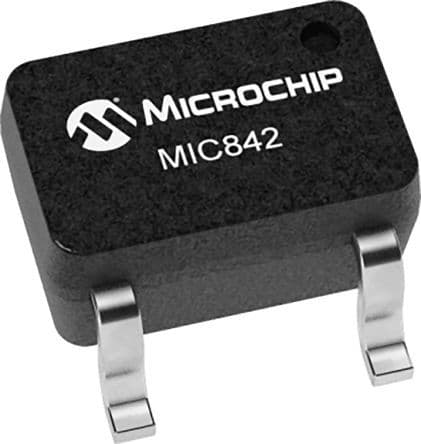

Product Images
