High-side power switch IC with 2A maximum output current and 77mΩ on-state resistance. Features a 1.7V to 5.5V operating supply voltage range and a simple On/Off interface. This surface-mount component is housed in a compact 6-pin SC package, measuring 2.2mm x 1.35mm x 1mm. Operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.
PackageSC
Current2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC94061YC6-TR technical specifications.
General
Package/Case
SC
Height
1mm
Interface
On/Off
Lead Free
Lead Free
Length
2.2mm
Max Input Voltage
5.5V
Min Input Voltage
1.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Mount
Surface Mount
Number of Inputs
1
Number of Outputs
1
On-State Resistance
77mR
On-state Resistance-Max
110MR
Operating Supply Voltage
5.5V
Output Configuration
High Side
Output Current
2A
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
2A
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2A
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC94061YC6-TR Datasheet
Download the complete datasheet for Microchip MIC94061YC6-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

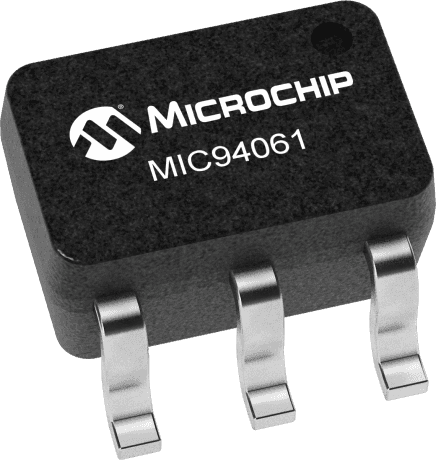

Product Images
