2A, 5.5V, 1-channel power supply support circuit featuring a high-side output configuration and 85mR on-state resistance. Surface mountable in a DFN EP package with dimensions of 2mm width, 2mm height, and 0.85mm length. Includes On/Off interface and two outputs, operating from -40°C to 125°C. Packaged on tape and reel, this RoHS compliant component is designed for general power management applications.
PackageDFN EP
Voltage5.5V
Current2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC94069YML-TR technical specifications.
General
| Package/Case | DFN EP |
| Current | 2A |
| Height | 2mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 0.85mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| On-State Resistance | 85mR |
| Output Configuration | High Side |
| Output Current | 2A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2A |
| Voltage | 5.5V |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC94069YML-TR Datasheet
Download the complete datasheet for Microchip MIC94069YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

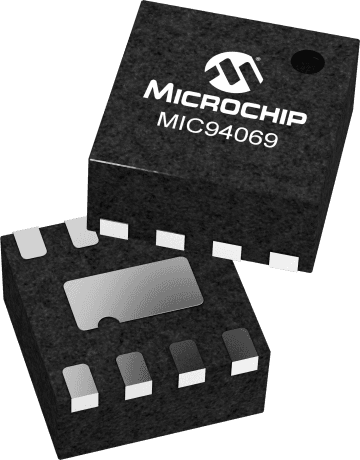

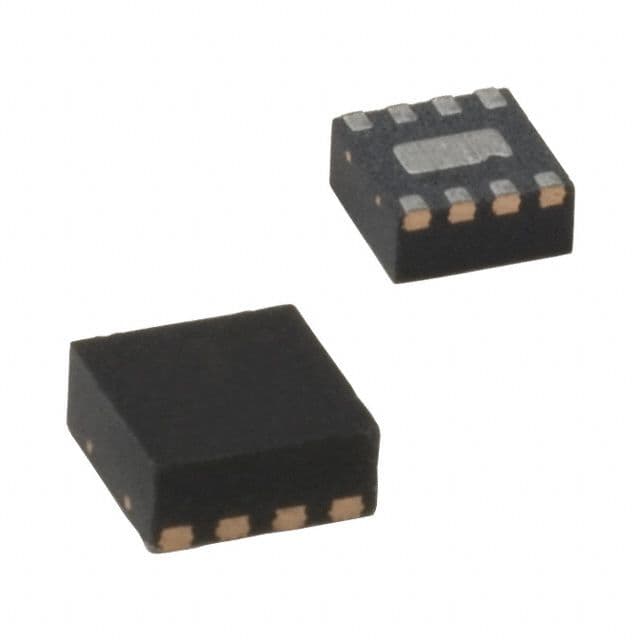

Product Images
