Technical Specifications
Microchip MTS2916A-HGC1 technical specifications.
General
Package/Case
SOP
Height
2.642mm
Interface
Parallel
Lead Free
Lead Free
Length
15.85mm
Max Collector Current
750mA
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Supply Voltage
40V
Min Supply Voltage
10V
Number of Outputs
2
Operating Supply Voltage
30V
Output Current
750mA
Package Quantity
32
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
800uA
Technology
CMOS
Width
7.595mm
Compliance
RoHS
Compliant
Datasheet
Microchip MTS2916A-HGC1 Datasheet
Download the complete datasheet for Microchip MTS2916A-HGC1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

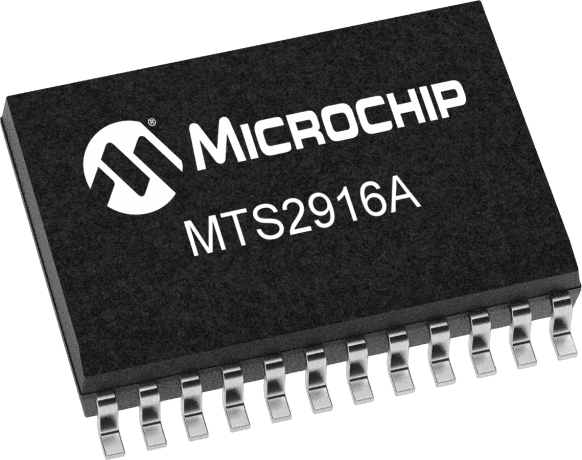

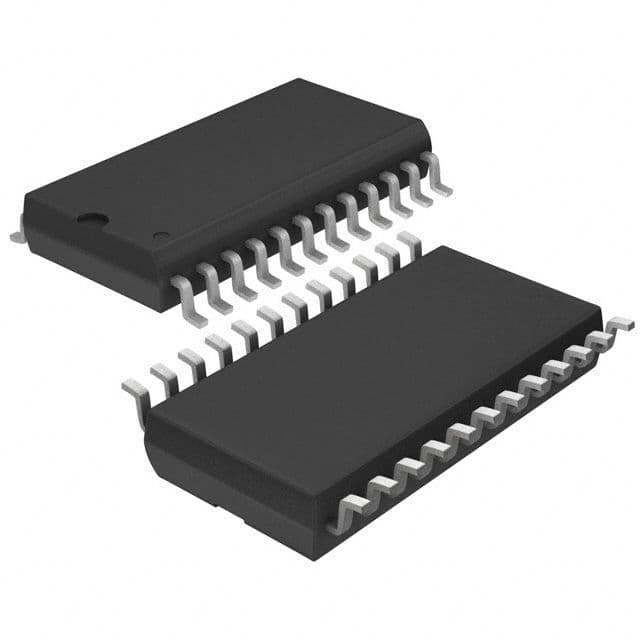

Product Images
