Microchip
PIC12C508/JW
8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, CDIP8, 0.300 INCH, WINDOWED, SIDE BRAZED, CERAMIC, DIP-8
Frequency4MHz
Quick Jump:
Technical Specifications
Microchip PIC12C508/JW technical specifications.
General
Access Time
4us
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Contains Lead
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
768B
Memory Type
EPROM,
Min Supply Voltage
2.5V
Number of Programmable I/O
5
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
56
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12C508/JW Datasheet
Download the complete datasheet for Microchip PIC12C508/JW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

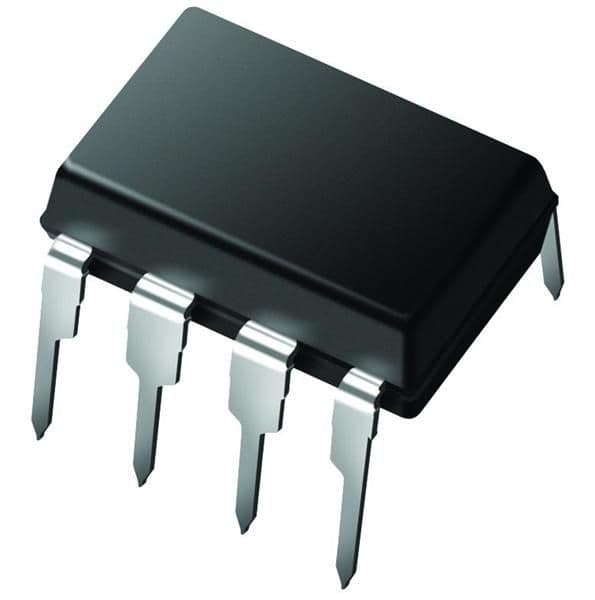

Product Images
