8-bit RISC microcontroller featuring 4MHz operation and 5 programmable I/O pins. This OTP microcontroller offers 0.75KB of memory, 25 Bytes of RAM, and an internal oscillator. Operating from 3V to 5.5V, it includes a watchdog timer and power-on reset. Packaged in an 8-pin PDIP, this lead-free component is RoHS compliant and suitable for operation between -40°C and 85°C.
Frequency4MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC12C508A-04I/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
0.125inch
Lead Free
Lead Free
Length
0.385inch
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
0.75KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of Bits
8
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
60
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Width
0.26inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12C508A-04I/P Datasheet
Download the complete datasheet for Microchip PIC12C508A-04I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

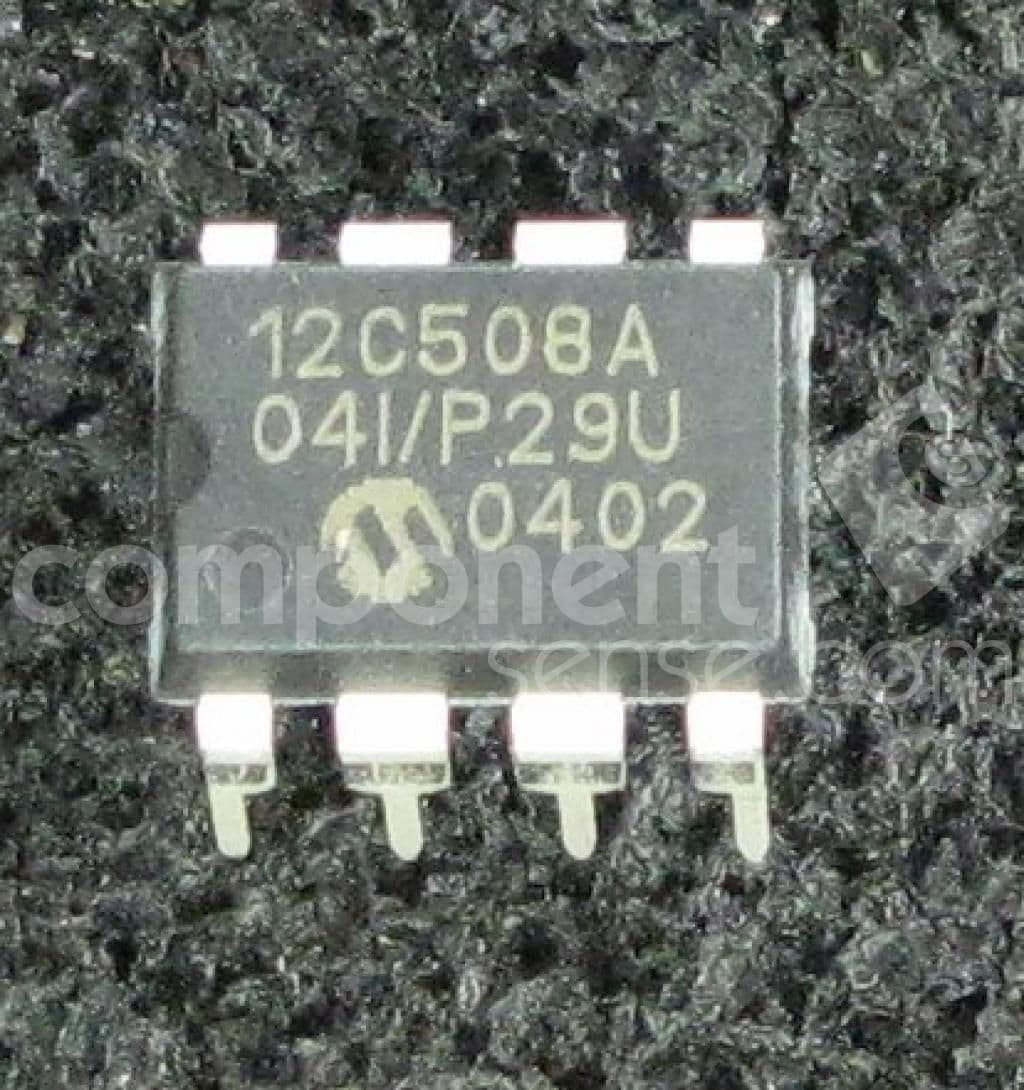

Product Images
