8-bit microcontroller (MCU) featuring 1.5KB EPROM memory and 5 I/O pins. Operates at up to 4MHz with an 8-bit data bus width and PIC core architecture. Includes one timer/counter, internal oscillator, POR, and WDT peripherals. Packaged in an 8-pin CDIP with a temperature range of 0°C to 70°C.
Frequency4MHz
PackageCDIP
Quick Jump:
Technical Specifications
Microchip PIC12C509A/JW technical specifications.
General
Access Time
4us
Package/Case
CDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Contains Lead
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
EPROM,
Min Supply Voltage
2.5V
Number of Bits
8
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
56
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
41B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12C509A/JW Datasheet
Download the complete datasheet for Microchip PIC12C509A/JW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

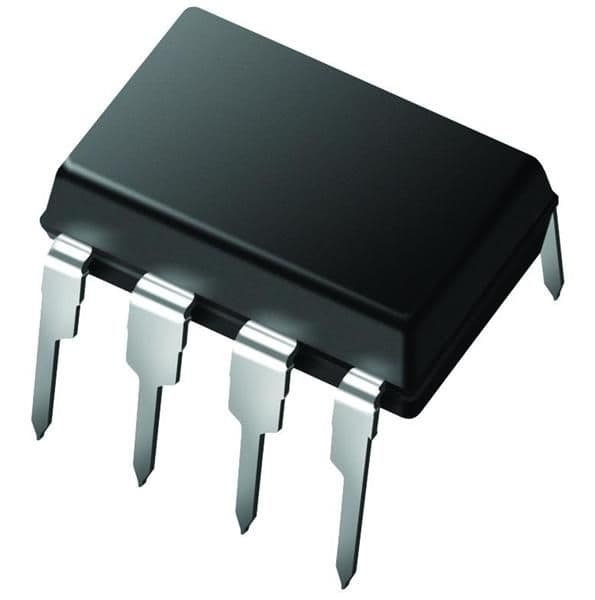

Product Images
