Technical Specifications
Microchip PIC12C509AT-04I/MF technical specifications.
General
Access Time
4us
Package/Case
DFN
Core Architecture
PIC
Data Bus Width
8b
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
EPROM, , OTP
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
5
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
POR, WDT
RAM Size
41B
Series
PIC® 12C
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12C509AT-04I/MF Datasheet
Download the complete datasheet for Microchip PIC12C509AT-04I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

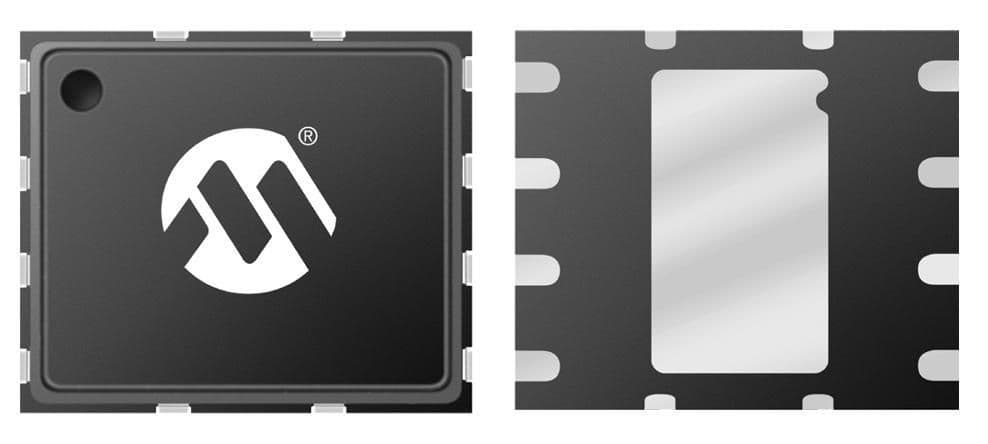

Product Images
