8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 32MHz with an 8-bit address and data bus. Integrated peripherals include SPI, I2C, UART, USART, 4-channel ADC, and 1 PWM channel. Designed for through-hole mounting in a PDIP-8 package, supporting a supply voltage range of 2.5V to 5.5V. Offers a nominal supply current of 34uA and an operating temperature range of -40°C to 125°C.
Frequency32MHz
PackagePDIP
Current34uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC12F1840-E/P technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.195inch
Interface
SPI, I2C, UART, USART
Lead Free
Lead Free
Length
0.4inch
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Through Hole
Nominal Supply Current
34uA
Number of A/D Converters
1
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
6
Number of I2C Channels
1
Number of Programmable I/O
5
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
Series
PIC® XLP™ 12F
Supply Current
34uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC12F1840-E/P Datasheet
Download the complete datasheet for Microchip PIC12F1840-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

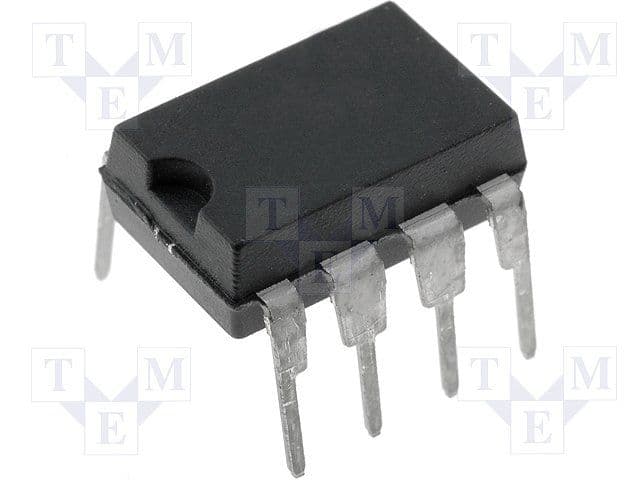

Product Images
