8-bit RISC microcontroller featuring 32MHz operation and 7KB FLASH memory. This PDSO8 packaged MCU offers 5 programmable I/Os, 3 timers, and multiple communication interfaces including SPI, I2C, and UART. Operating from 2.5V to 5.5V, it includes a watchdog timer, brown-out detection, and 4 ADC channels. With a temperature range of -40°C to 85°C, this RoHS compliant component is ideal for embedded applications.
Frequency32MHz
PackageSOIC
Current34uA
Quick Jump:
Technical Specifications
Microchip PIC12F1840-I/SN technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.059inch
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Length
0.192inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
4
Number of Bits
8
Number of I/Os
5
Number of I2C Channels
1
Number of Programmable I/O
5
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 12F
Supply Current
34uA
Watchdog Timer
Yes
Width
0.154inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F1840-I/SN Datasheet
Download the complete datasheet for Microchip PIC12F1840-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

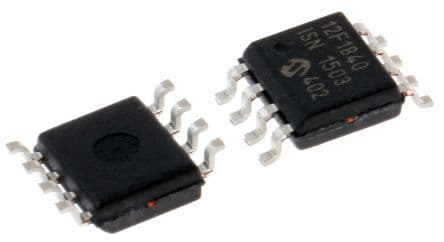

Product Images
