Microchip
PIC12F509T-E/SN
8-BIT, FLASH, 4 MHz, RISC MICROCONTROLLER, PDSO8, 3.90 MM, LEAD FREE, PLASTIC, SOIC-8
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC12F509T-E/SN technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Interface
RS-232, USB
Max Frequency
4MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of I/Os
5
Number of Programmable I/O
6
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
POR, WDT
RAM Size
41B
RoHS Compliant
Yes
Series
PIC® 12F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F509T-E/SN Datasheet
Download the complete datasheet for Microchip PIC12F509T-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

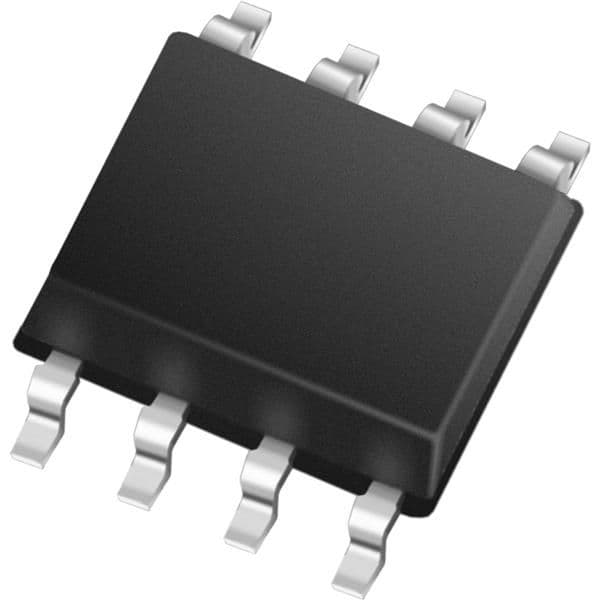

Product Images
