8-bit RISC microcontroller featuring 1.5KB FLASH memory and 38B RAM. Operates at up to 8MHz with an internal oscillator. Offers 5 I/O pins, 1 A/D converter with 3 channels, and a watchdog timer. Packaged in an 8-pin PDIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency8MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC12F510-I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
8MHz
Height
0.195inch
Lead Free
Lead Free
Length
10.16mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
3
Number of Bits
8
Number of I/Os
5
Number of Programmable I/O
6
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
60
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
38B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12F
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F510-I/P Datasheet
Download the complete datasheet for Microchip PIC12F510-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

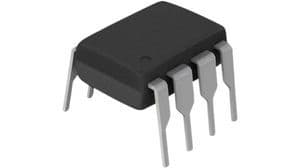

Product Images
