8-bit RISC microcontroller featuring 1.5KB FLASH memory and 38B RAM. Operates at up to 8MHz with an internal oscillator. Offers 5 programmable I/Os, 1 timer/counter, and includes POR and WDT peripherals. Packaged in a lead-free SOIC surface mount package, suitable for operation from -40°C to 85°C with a supply voltage range of 2V to 5.5V.
Frequency8MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F510T-I/SN technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
8MHz
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
5
Number of Programmable I/O
5
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
38B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F510T-I/SN Datasheet
Download the complete datasheet for Microchip PIC12F510T-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

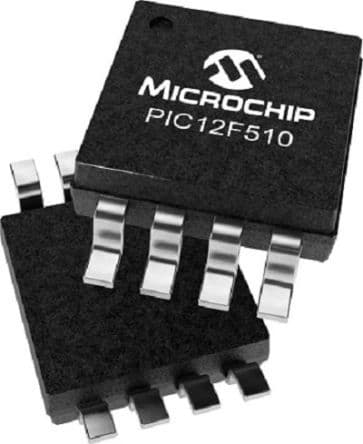

Product Images
