8-bit PIC RISC microcontroller featuring 1.75KB Flash memory and 64B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 6 programmable I/Os, 2 timers/counters, and internal oscillator. Supports RS-232 and USB interfaces, with POR and WDT peripherals. Packaged in an 8-pin SOIC for surface mounting, operating from 2V to 5.5V supply voltage.
Frequency20MHz
PackageSOIC
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12F629-I/SN technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
1.75KB
Frequency
20MHz
Height
1.5mm
Interface
RS-232, USB
Lead Free
Lead Free
Length
4.9mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
0
Number of Bits
8
Number of I/Os
6
Number of Programmable I/O
6
Number of Timers/Counters
2
Number of UART Channels
0
Oscillator Type
Internal
Package Quantity
100
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
64B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 12F
Supply Current
100uA
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12F629-I/SN Datasheet
Download the complete datasheet for Microchip PIC12F629-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

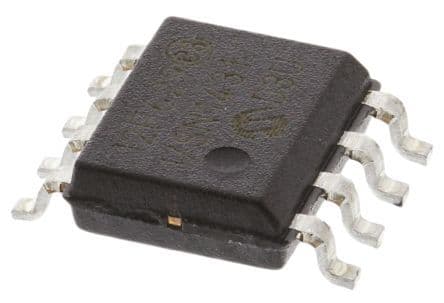

Product Images
