8-bit microcontroller featuring 768B OTP EPROM memory and 25B RAM. Operates at up to 4MHz with an 8-bit data bus width. Offers 5 programmable I/O pins and 8 timers/counters, with an internal oscillator. Packaged in an 8-pin SOIC for surface mounting, this lead-free and RoHS compliant component operates from 2.5V to 5.5V. Includes POR and WDT peripherals.
Frequency4MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC12LCE518T-04/SN technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
768B
Memory Type
EPROM, , OTP
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
5
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
RoHS Compliant
Yes
Series
PIC® 12C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC12LCE518T-04/SN Datasheet
Download the complete datasheet for Microchip PIC12LCE518T-04/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

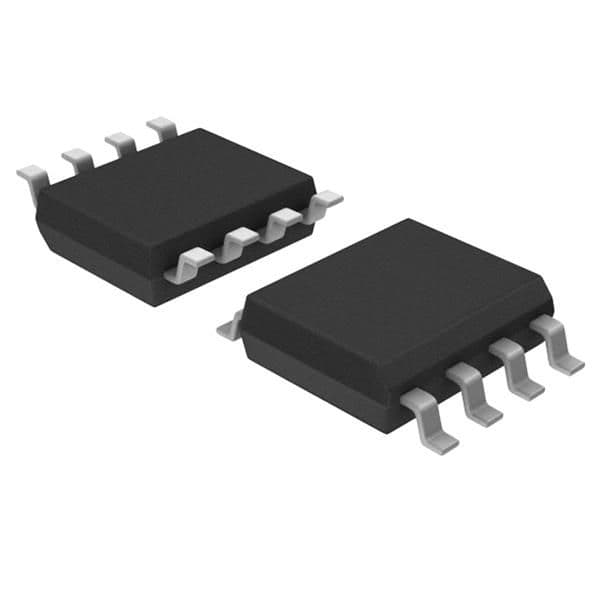

Product Images
