Microchip
PIC16C505T-20I/SL
8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, PDSO14, 0.150 INCH, PLASTIC, SOIC-14
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C505T-20I/SL technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of I/Os
11
Number of Programmable I/O
11
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
2600
Packaging
Tape and Reel
Peripherals
POR, WDT
RAM Size
72B
RoHS Compliant
Yes
Series
PIC® 16C
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C505T-20I/SL Datasheet
Download the complete datasheet for Microchip PIC16C505T-20I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

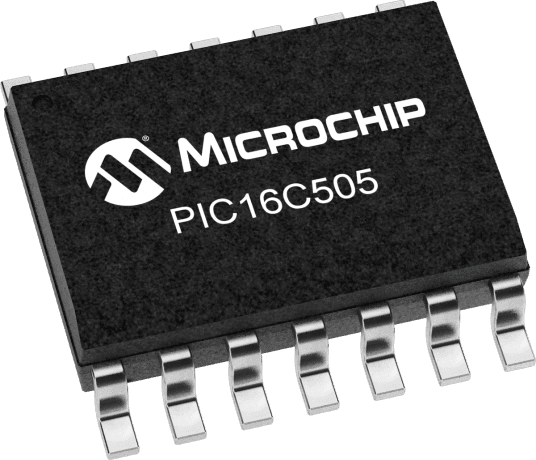

Product Images
