8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 4MHz. This OTP memory microcontroller offers 0.75KB of program memory and 25 bytes of RAM, with 12 programmable I/O pins. It includes a watchdog timer and peripherals like POR, operating from a 3V to 6.25V supply. Packaged in an 18-pin SOIC (SO-18) with an access time of 4µs, it supports external oscillator types and operates within a temperature range of -40°C to 85°C.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C54-XTI/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
6.25V
Memory Size
0.75KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C54-XTI/SO Datasheet
Download the complete datasheet for Microchip PIC16C54-XTI/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

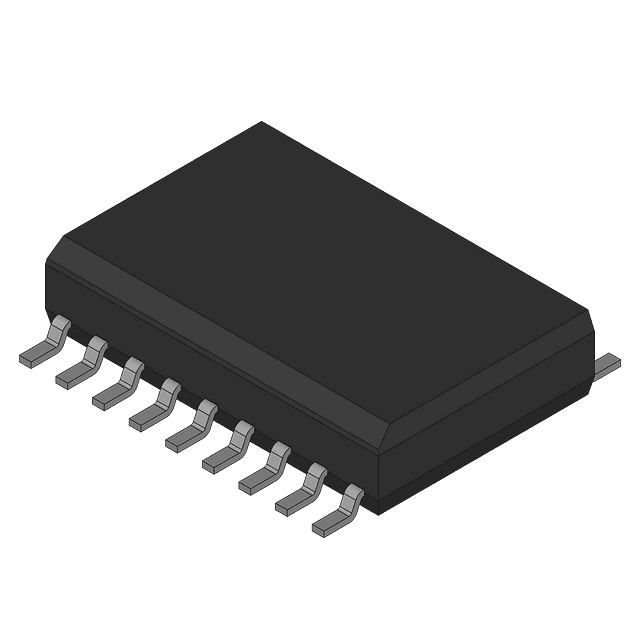

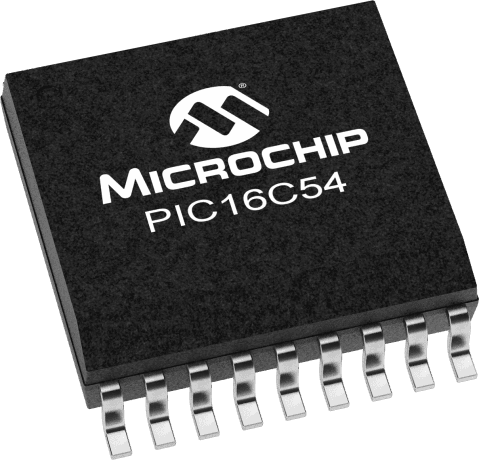

Product Images
