8-bit RISC microcontroller featuring a 20MHz core frequency and 20 programmable I/O pins. This OTP (One-Time Programmable) memory microcontroller offers 0.75KB of program memory and 24 bytes of RAM. It operates with a supply voltage range of 4.5V to 5.5V and includes an RS-232 interface, POR, and WDT peripherals. Packaged in a 28-pin PDIP, this RoHS compliant component supports an external oscillator and has a maximum operating temperature of 85°C.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C55-HSI/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
0.75KB
Memory Type
OTP
Min Supply Voltage
4.5V
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
24B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC16C55-HSI/P Datasheet
Download the complete datasheet for Microchip PIC16C55-HSI/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

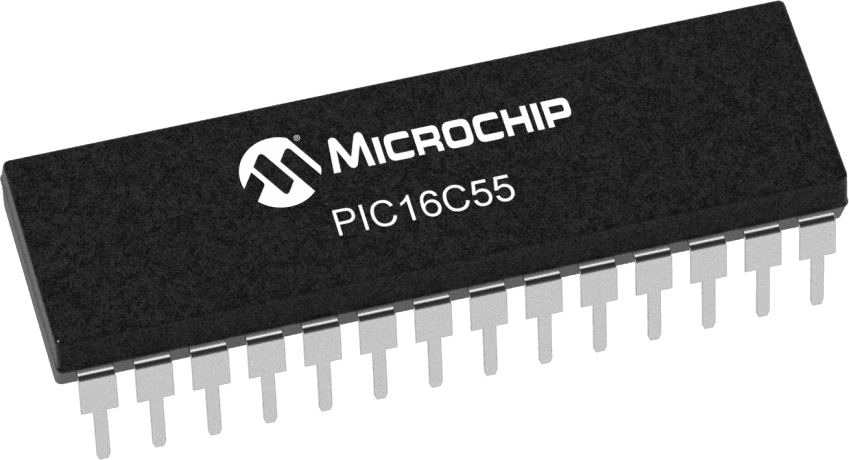

Product Images
