Microchip
PIC16C554/JW
8-BIT, UVPROM, 20 MHz, RISC MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERDIP-18
Frequency20MHz
Quick Jump:
Technical Specifications
Microchip PIC16C554/JW technical specifications.
General
Access Time
20us
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Contains Lead
Max Frequency
20MHz
Max Operating Temperature
70°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
896B
Memory Type
EPROM,
Min Operating Temperature
0°C
Min Supply Voltage
3V
Number of Programmable I/O
13
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
80B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C554/JW Datasheet
Download the complete datasheet for Microchip PIC16C554/JW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

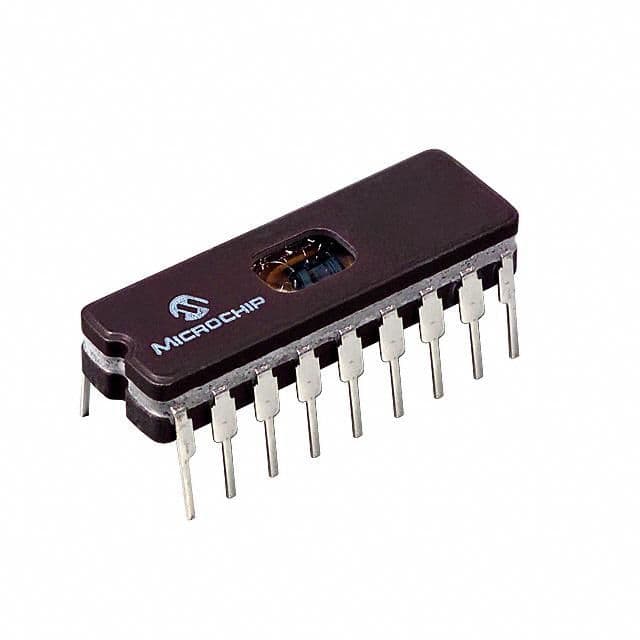

Product Images
