8-bit RISC microcontroller featuring a 20MHz maximum frequency and 896B EPROM/OTP memory. Operates from 3V to 5.5V with an 80B RAM size. Includes 13 programmable I/O pins, 8 timers/counters, and POR/WDT peripherals. Packaged in a 20-pin SSOP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C554T-20I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
896B
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
80B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C554T-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C554T-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

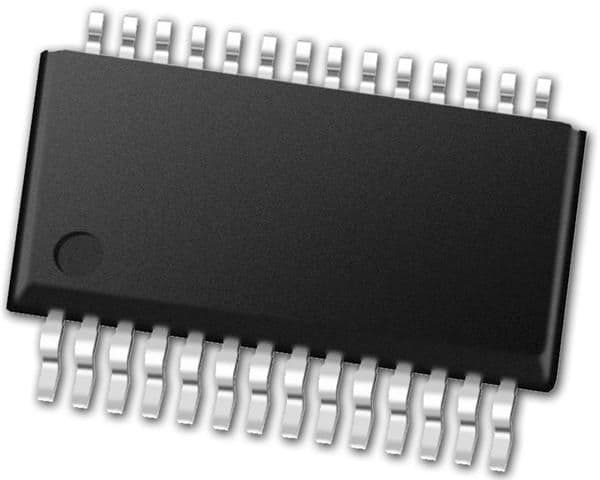

Product Images
