8-bit RISC microcontroller featuring 3.5KB EPROM/OTP memory and 128B RAM. Operates at up to 20MHz with a 4µs access time. Includes 13 programmable I/O pins, 8 timers/counters, and peripherals like POR and WDT. Designed for surface mounting in an SSOP-20 package, with an operating temperature range of -40°C to 85°C and a supply voltage of 3V to 5.5V.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C558T-04I/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C558T-04I/SS Datasheet
Download the complete datasheet for Microchip PIC16C558T-04I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

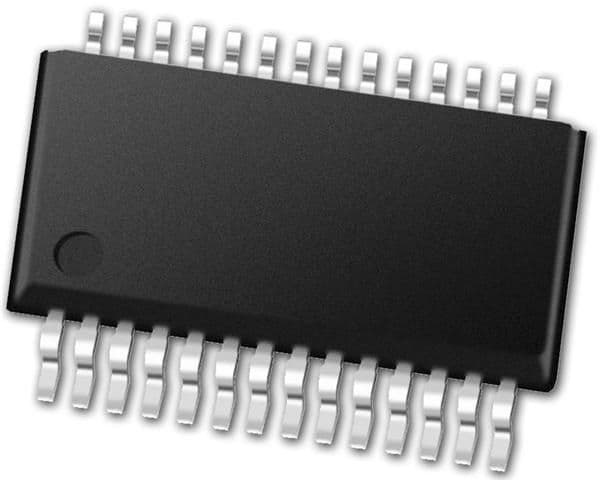

Product Images
