8-bit RISC microcontroller featuring a 4MHz clock speed and 512B OTP EPROM memory. This through-hole component offers 20 programmable I/Os, an 8-bit address and data bus, and a single timer/counter. Operating from 4.5V to 5.5V, it includes POR and WDT peripherals, with an RS-232 interface. Packaged in a 28-pin PDIP, it supports an operating temperature range of 0°C to 70°C.
Frequency4MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16C55A-04/P technical specifications.
General
Access Time
4us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
4.06mm
Interface
RS-232
Lead Free
Lead Free
Length
37.21mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
512B
Memory Type
EPROM, , OTP
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits
8
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Number of USB Channels
0
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
24B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Termination
Through Hole
Watchdog Timer
Yes
Width
14.22mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C55A-04/P Datasheet
Download the complete datasheet for Microchip PIC16C55A-04/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

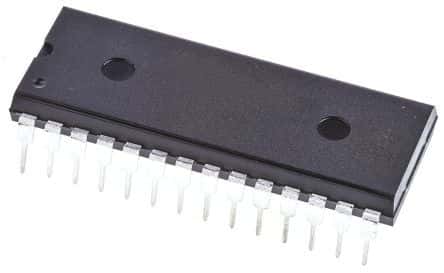

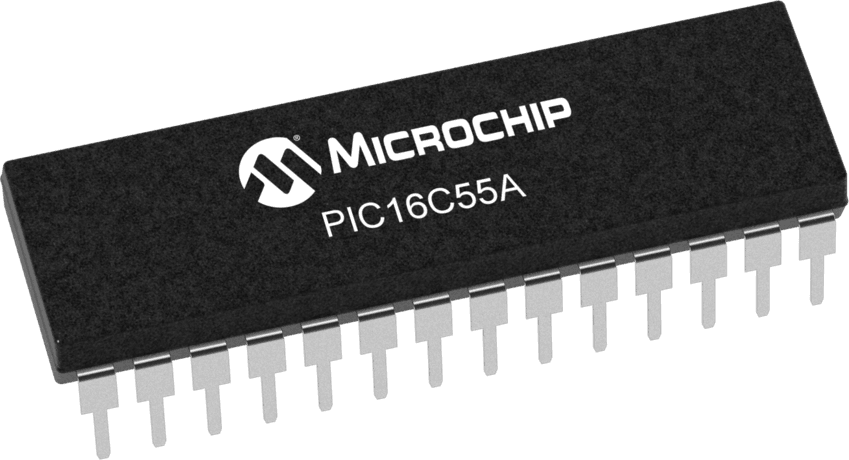

Product Images
