Microchip
PIC16C56-RCI/P
8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP18, 0.300 INCH, PLASTIC, MS-001, DIP-18
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C56-RCI/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
6.25V
Memory Size
1.5KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
1
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
25B
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC16C56-RCI/P Datasheet
Download the complete datasheet for Microchip PIC16C56-RCI/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

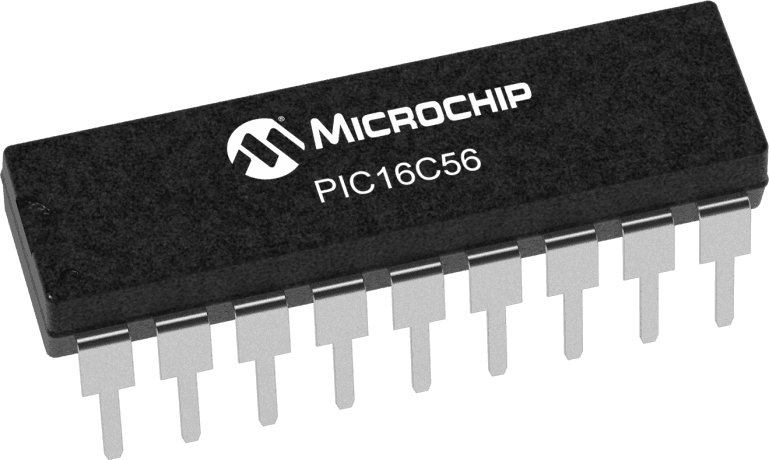

Product Images
