8-bit RISC microcontroller featuring 3KB OTP memory and 72B RAM. Operates at up to 4MHz with an 8-bit data bus. Includes one timer/counter, POR, and WDT peripherals. Supports RS-232 interface and has 20 programmable I/Os. Packaged in a 28-pin SSOP, this lead-free and RoHS compliant component operates from 4.5V to 5.5V.
Frequency4MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16C57C-04I/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
RS-232
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C57C-04I/SS Datasheet
Download the complete datasheet for Microchip PIC16C57C-04I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

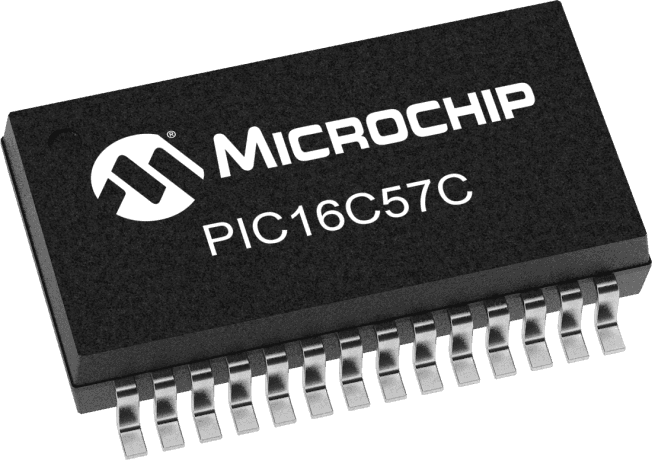

Product Images
