8-bit RISC microcontroller featuring 20MHz operation and 13 I/O pins. This through-hole component offers 896B of EPROM/OTP memory and 96B of RAM. Operating from 3V to 5.5V, it includes a watchdog timer and peripherals like Brown-out Detect/Reset and POR. The PDIP package supports a maximum operating temperature of 70°C.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16C620A-20/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
896B
Memory Type
EPROM, , OTP
Min Supply Voltage
3V
Mount
Through Hole
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
96B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C620A-20/P Datasheet
Download the complete datasheet for Microchip PIC16C620A-20/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

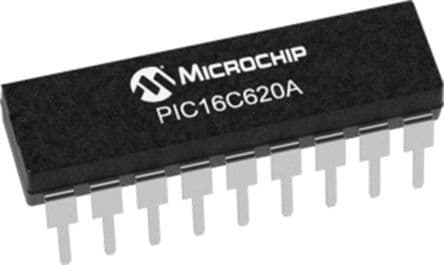

Product Images
