8-bit microcontroller (MCU) featuring a PIC core architecture with an 8-bit data bus. This integrated circuit offers 896B of EPROM memory and 96B of RAM, operating at a maximum frequency of 40MHz. It supports an external oscillator and includes 13 programmable I/O pins, 8 timers/counters, and peripherals such as Brown-out Detect/Reset, POR, and a Watchdog Timer. The component operates within a supply voltage range of 3V to 5.5V and has a maximum power dissipation of 1W, with an operating temperature range of 0°C to 70°C. Packaged in a CDIP case, this RoHS compliant component contains lead.
Frequency40MHz
PackageCDIP
Quick Jump:
Technical Specifications
Microchip PIC16C620A/JW technical specifications.
General
Access Time
20us
Package/Case
CDIP
Core Architecture
PIC
Data Bus Width
8b
Lead Free
Contains Lead
Max Frequency
40MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
896B
Memory Type
EPROM,
Min Supply Voltage
3V
Number of Programmable I/O
13
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
96B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C620A/JW Datasheet
Download the complete datasheet for Microchip PIC16C620A/JW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

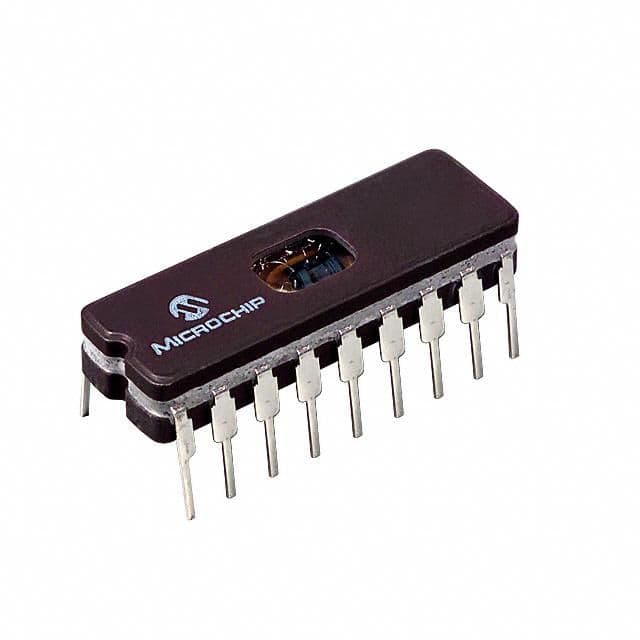

Product Images
