8-bit RISC microcontroller featuring 4MHz operation with a maximum frequency of 40MHz. This through-hole component offers 3.5KB of EPROM/OTP memory and 128B of RAM. Includes 13 programmable I/O pins, one timer/counter, and peripherals such as Brown-out Detect/Reset, POR, and a Watchdog Timer. Operates from 3V to 6V with an access time of 4µs, housed in a PDIP-18 package.
Frequency4MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16C622A-04E/P technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
3.5KB
Memory Type
EPROM, , OTP
Min Supply Voltage
3V
Mount
Through Hole
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5.5V
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C622A-04E/P Datasheet
Download the complete datasheet for Microchip PIC16C622A-04E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

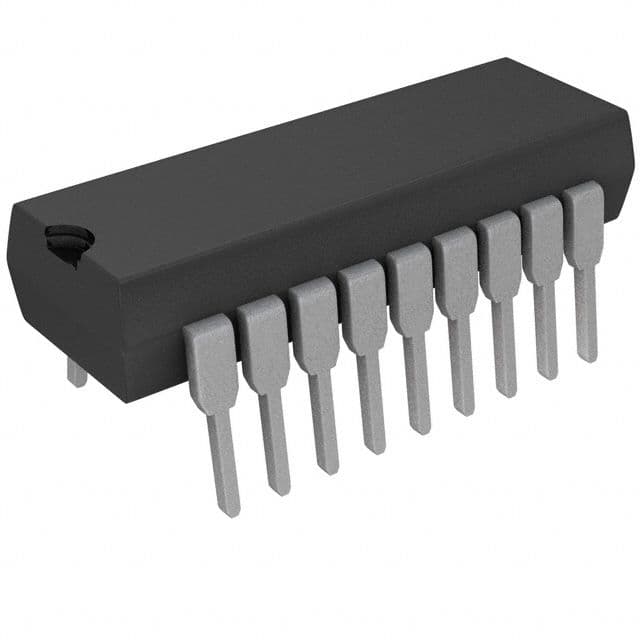

Product Images
