8-bit OTP microcontroller featuring a PIC core architecture, 3.5KB program memory, and 128B RAM. Operates at up to 4MHz with an external oscillator and offers 22 programmable I/Os. Supports I2C, SPI, and USART interfaces, along with peripherals including Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 28-pin SSOP, this lead-free and RoHS compliant component operates from 4V to 6V with a typical supply voltage of 5V.
Frequency4MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16C62A-04/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, USART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
3.5KB
Memory Type
OTP
Min Supply Voltage
4V
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C62A-04/SS Datasheet
Download the complete datasheet for Microchip PIC16C62A-04/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

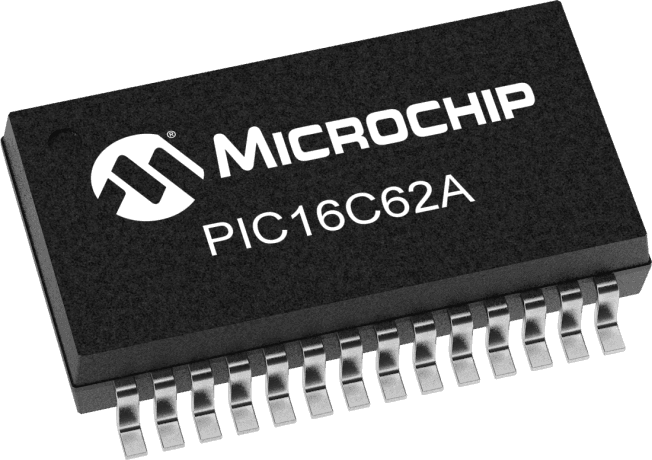

Product Images
