8-bit RISC microcontroller featuring 3.5KB OTP memory and 128B RAM. Operates at up to 4MHz with an 8-bit data bus and 22 programmable I/O pins. Includes I2C, SPI, and USART interfaces, along with a watchdog timer and one PWM channel. Packaged in a 28-pin PDIP, this lead-free component supports operating voltages from 4V to 6V and functions within a temperature range of -40°C to 85°C.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C62A-04I/SP technical specifications.
General
Access Time
4us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Min Supply Voltage
4V
Number of Bits
8
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C62A-04I/SP Datasheet
Download the complete datasheet for Microchip PIC16C62A-04I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

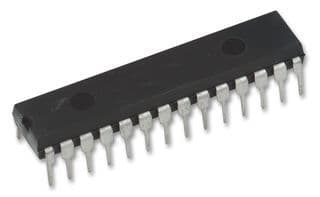

Product Images
