8-bit RISC microcontroller operating at up to 20MHz. Features 7KB of OTP memory, 192 bytes of RAM, and 22 programmable I/O pins. Supports I2C, SPI, and UART interfaces, with three timers/counters and a watchdog timer. Packaged in a 28-pin SOIC (SO28) with an operating voltage range of 4V to 6V. Includes Brown-out Detect/Reset, POR, and PWM peripherals.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C63-20/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
OTP
Min Supply Voltage
4V
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C63-20/SO Datasheet
Download the complete datasheet for Microchip PIC16C63-20/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

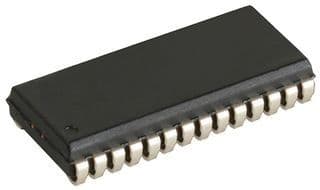

Product Images
