8-bit RISC microcontroller featuring a 20MHz clock speed and 7KB of OTP memory. This PDIP-packaged MCU offers 22 programmable I/O pins, supporting I2C, SPI, and USART interfaces. It includes peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer, operating from a 4V to 6V supply.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C63-20I/SP technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Number of Bits
8
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
2
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C63-20I/SP Datasheet
Download the complete datasheet for Microchip PIC16C63-20I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

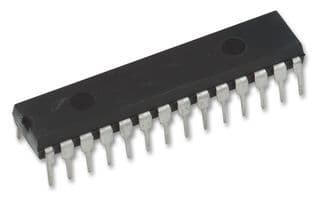

Product Images
