8-bit microcontroller (MCU) featuring 14KB OTP memory and 368B RAM. Operates at up to 20MHz with an 8-bit data bus width. Supports I2C, SPI, and USART/UART interfaces, with 22 I/O pins and 2 PWM channels. Includes 3 timers/counters, Brown-out Detect/Reset, POR, and Watchdog Timer peripherals. Packaged in a 28-pin PDIP for through-hole termination, with an operating supply voltage of 5V and a temperature range of -40°C to 85°C.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C66-10I/SP technical specifications.
General
Access Time
10us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
14KB
Memory Type
OTP
Min Supply Voltage
4V
Number of Bits
8
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
2
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Termination
Through Hole
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C66-10I/SP Datasheet
Download the complete datasheet for Microchip PIC16C66-10I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

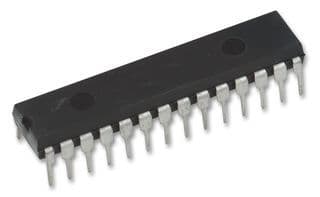

Product Images
