8-bit microcontroller (MCU) featuring 7KB OTP EPROM memory and 176B RAM. Operates at a maximum frequency of 10MHz with an access time of 10µs. Supports RS-232 interface and offers 33 programmable I/O pins. Designed for surface mounting in a TQFP package, with an operating temperature range of -40°C to 85°C. Includes integrated peripherals such as Brown-out Detect/Reset, POR, and a Watchdog Timer.
Frequency10MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C662T-10I/PT technical specifications.
General
Access Time
10us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Interface
RS-232
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
33
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
176B
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C662T-10I/PT Datasheet
Download the complete datasheet for Microchip PIC16C662T-10I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

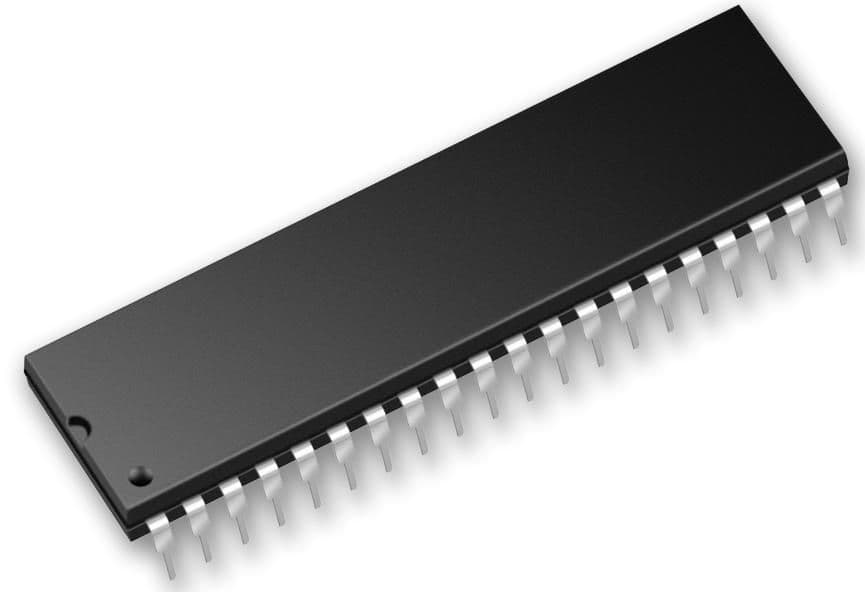

Product Images
