8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of OTP memory. This integrated circuit offers 13 programmable I/O pins, 4 ADC channels, and a single timer/counter. Operating from a 4V to 6V supply, it boasts an access time of 20µs and includes POR and WDT peripherals. Packaged in a 0.300-inch PDIP-18, this lead-free component operates within a 0°C to 70°C temperature range.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16C71-20/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
3.81mm
Lead Free
Lead Free
Length
23.5mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
6V
Memory Size
1.75KB
Memory Type
OTP
Min Supply Voltage
4V
Number of ADC Channels
4
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
36B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Width
7.112mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C71-20/P Datasheet
Download the complete datasheet for Microchip PIC16C71-20/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

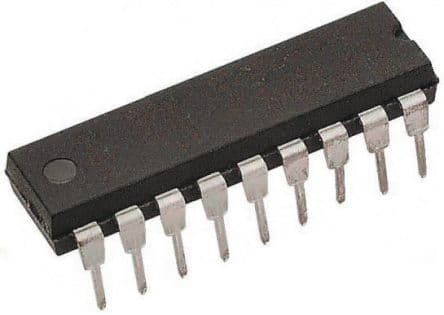

Product Images
