8-bit RISC microcontroller featuring a 4MHz clock speed and 1.75KB of FLASH memory. This PDSO18 packaged device offers 13 programmable I/O pins, 3 timers/counters, and peripherals including Brown-out Detect, POR, PWM, and WDT. Operating from 4V to 5.5V, it supports an access time of 4µs and a maximum power dissipation of 1W, with an operating temperature range of -40°C to 125°C. The unit is RoHS compliant and utilizes an external oscillator.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C712-04E/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH
Min Supply Voltage
4V
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C712-04E/SO Datasheet
Download the complete datasheet for Microchip PIC16C712-04E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

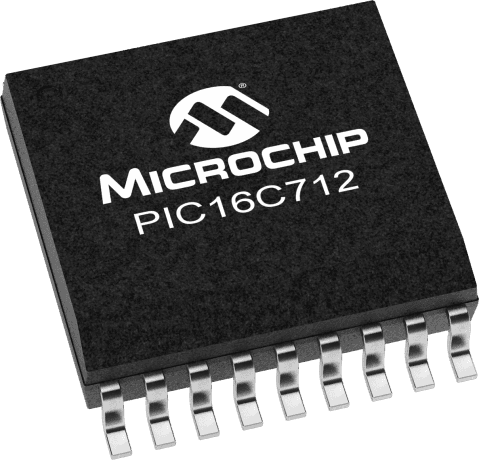

Product Images
