8-bit RISC microcontroller operating at up to 20MHz. Features 1.75KB of FLASH memory, 128B RAM, and 13 programmable I/O pins. Includes 3 timers/counters, Brown-out Detect/Reset, POR, PWM, and WDT peripherals. Packaged in an 18-pin SOIC case, this lead-free, RoHS-compliant component operates from 4V to 5.5V with a maximum power dissipation of 1W. Extended temperature range from -40°C to 125°C.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C712-20E/SO technical specifications.
General
| Access Time | 20us |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 1.75KB |
| Memory Type | FLASH |
| Min Supply Voltage | 4V |
| Number of I/Os | 13 |
| Number of Programmable I/O | 13 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 5V |
| Oscillator Type | External |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS Compliant | Yes |
| Series | PIC® 16C |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16C712-20E/SO Datasheet
Download the complete datasheet for Microchip PIC16C712-20E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

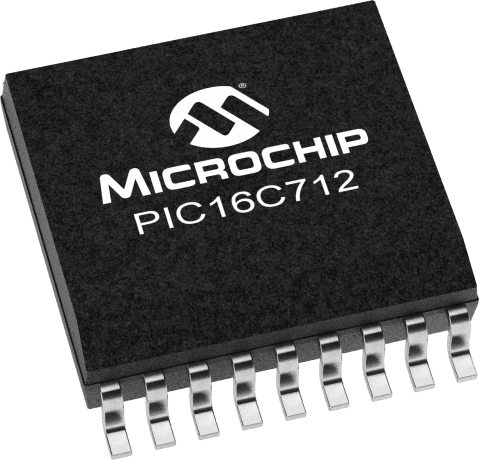

Product Images
