8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB OTP memory. This SOIC-packaged MCU offers 13 programmable I/O pins, 128 bytes of RAM, and 3 timers/counters. Operating from 4V to 5.5V, it includes peripherals like Brown-out Detect, POR, PWM, and a Watchdog Timer. Suitable for a wide temperature range of -40°C to 85°C, this lead-free, RoHS compliant component is available in PDSO18 packaging.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16C716-20I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
OTP
Min Supply Voltage
4V
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C716-20I/SO Datasheet
Download the complete datasheet for Microchip PIC16C716-20I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

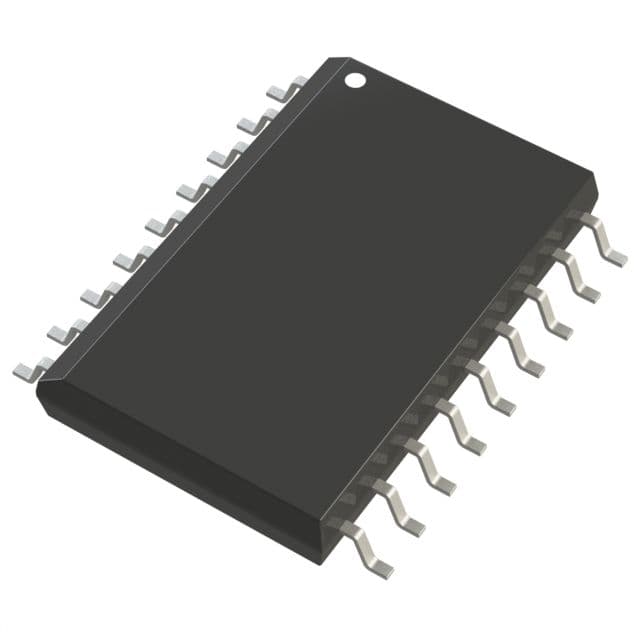

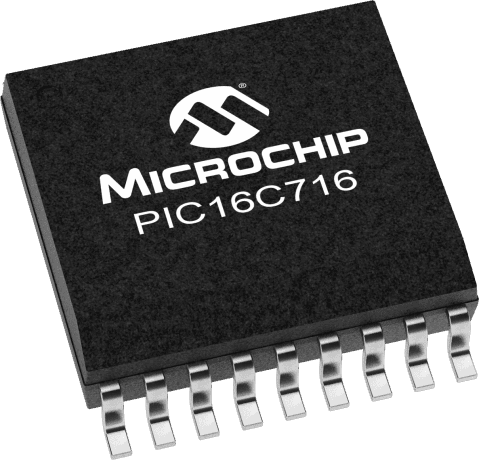

Product Images
