8-bit RISC microcontroller operating at 20MHz, featuring 3.5KB OTP memory and 128B RAM. This integrated circuit offers 22 programmable I/O pins and supports I2C, SPI, and SSP interfaces. Includes three timers/counters, a watchdog timer, and peripherals such as Brown-out Detect/Reset, POR, and PWM. Packaged in a 28-pin SSOP with an operating supply voltage of 5V, this lead-free component is RoHS compliant and operates from -40°C to 85°C.
Frequency20MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16C72A-20I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4V
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C72A-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C72A-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

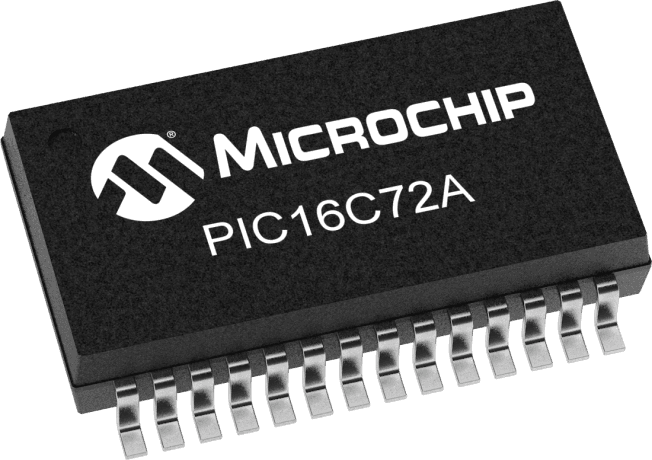

Product Images
