8-bit RISC microcontroller featuring a 20MHz clock speed and 3.5KB OTP memory. Offers 22 programmable I/O pins and supports I2C, SPI, and SSP interfaces. Includes 3 timers/counters, Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Operates from 4V to 5.5V with a maximum power dissipation of 1W, suitable for temperatures from -40°C to 85°C. Packaged in a 28-pin SSOP.
Frequency20MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16C72AT-20I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C72AT-20I/SS Datasheet
Download the complete datasheet for Microchip PIC16C72AT-20I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

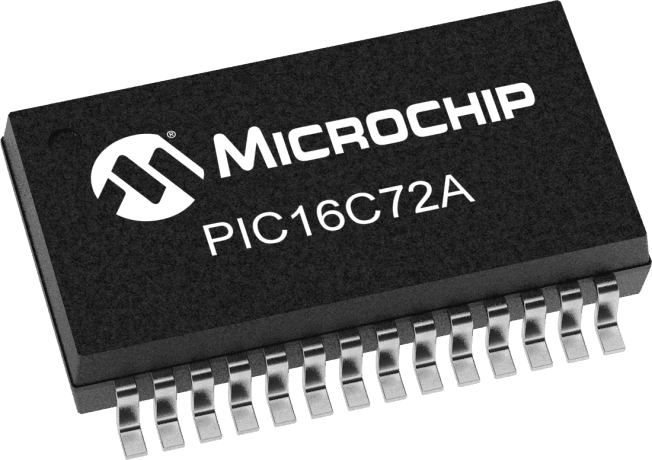

Product Images
