MICROCHIP

PIC16C74A/JW

Datasheet

8-Bit RISC MCU, 20MHz, 7KB EPROM, 192B RAM, I2C, SPI, UART, 40-Pin DIP

Microchip

PIC16C74A/JW

Name: PIC16C74A/JW Microchip
Brand: Microchip
SKU: PIC16C74A/JW

8-Bit RISC MCU, 20MHz, 7KB EPROM, 192B RAM, I2C, SPI, UART, 40-Pin DIP

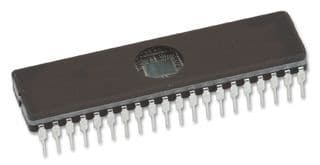

8-bit RISC microcontroller featuring a 20MHz clock speed and 7KB EPROM memory. This through-hole component offers 33 programmable I/O pins, 192 bytes of RAM, and supports I2C, SPI, and USART/UART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT, with three timers/counters. Operates from 4V to 6V with an external oscillator, suitable for temperatures between 0°C and 70°C.

Frequency20MHz

MountingThrough Hole

Quick Jump:

Technical Specifications

Microchip PIC16C74A/JW technical specifications.

General

Access Time	20us
Core Architecture	PIC
Data Bus Width	8b
Frequency	20MHz
Height	4.7mm
Interface	I2C, SPI, USART, UART
Lead Free	Contains Lead
Length	52.7mm
Max Frequency	20MHz
Max Operating Temperature	70°C
Memory Size	7KB
Memory Type	EPROM,
Min Operating Temperature	0°C
Max Supply Voltage	6V
Min Supply Voltage	4V
Mount	Through Hole
Number of Programmable I/O	33
Number of Timers/Counters	3
Operating Supply Voltage	5V
Oscillator Type	External
Package Quantity	10
Packaging	Rail/Tube
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
RAM Size	192B
RoHS Compliant	Yes
Series	PIC® 16C
Width	15.24mm
