8-bit RISC microcontroller featuring a 20MHz clock speed and 14KB EPROM memory. Offers 33 programmable I/O pins, 3 timers/counters, and peripherals including Brown-out Detect/Reset, POR, PWM, and WDT. Supports I2C, SPI, and USART/UART interfaces with an 8-bit data bus. Operates from a 4V to 6V supply voltage and is packaged in a 40-pin ceramic DIP for through-hole mounting.
Frequency20MHz
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16C77/JW technical specifications.
General
Access Time
20us
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Contains Lead
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
6V
Memory Size
14KB
Memory Type
EPROM,
Min Supply Voltage
4V
Mount
Through Hole
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C77/JW Datasheet
Download the complete datasheet for Microchip PIC16C77/JW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

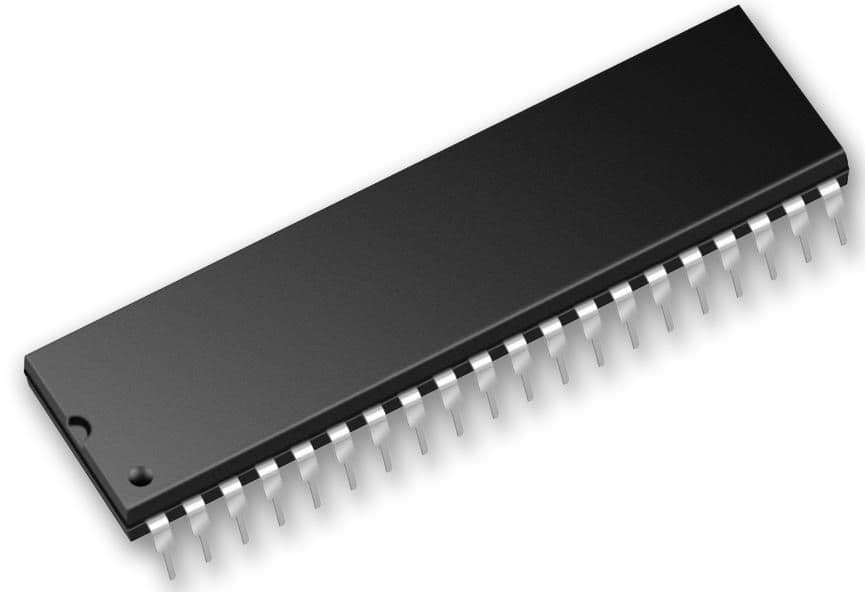

Product Images
