8-bit RISC microcontroller featuring a 20MHz core frequency and 3.5KB of OTP/EPROM memory. This PDIP packaged MCU offers 16 programmable I/O pins, supporting I2C and SPI interfaces, along with a PWM channel and three timers/counters. Operating from a 4V to 5.5V supply, it includes a watchdog timer and a maximum power dissipation of 1W.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16C770-I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4V
Mount
Through Hole
Number of Bits
8
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
22
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C770-I/P Datasheet
Download the complete datasheet for Microchip PIC16C770-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

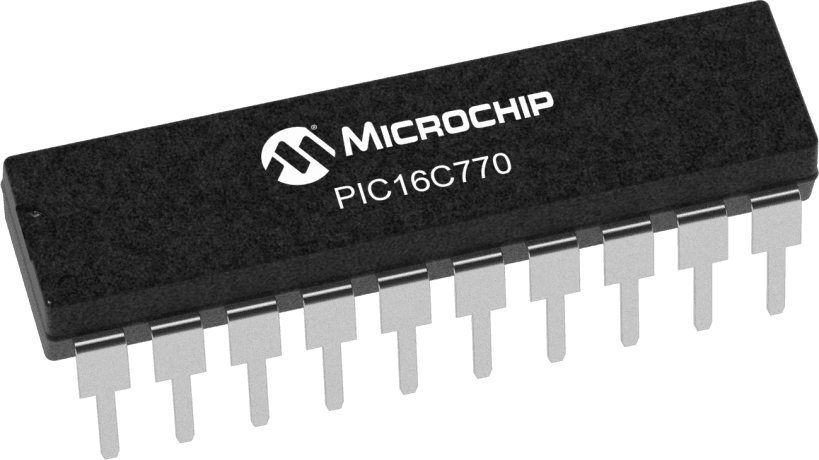

Product Images
