8-bit RISC microcontroller with 20MHz operation and 7KB EPROM/OTP memory. Features include 256B RAM, 15 I/Os (16 programmable), and 6 ADC channels. Integrated peripherals include I2C, SPI, SSP, PWM, WDT, POR, and Brown-out Detect/Reset. Operates from 4V to 5.5V supply, with a temperature range of -40°C to 85°C. Packaged in a 0.300 inch SOIC (PDSO18) for surface mounting.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C771-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.39mm
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Length
13mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4V
Mount
Surface Mount
Number of ADC Channels
6
Number of Bits
8
Number of I/Os
15
Number of I2C Channels
1
Number of Programmable I/O
16
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C771-I/SO Datasheet
Download the complete datasheet for Microchip PIC16C771-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

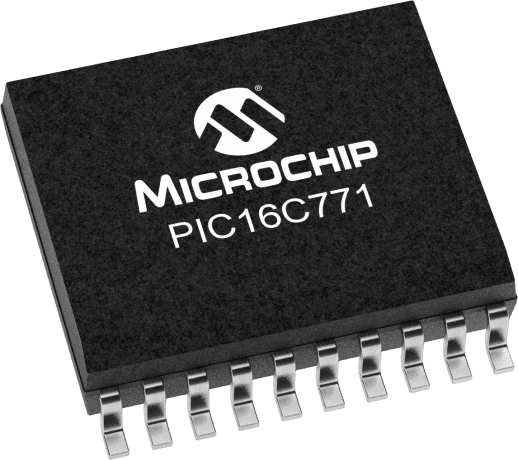

Product Images
