8-bit RISC microcontroller featuring a 20MHz clock speed and 7KB of OTP/EPROM memory. This surface-mount device offers 256B RAM, 22 programmable I/O pins, and multiple communication interfaces including I2C, SPI, and UART. Integrated peripherals include PWM and a watchdog timer, with 6 ADC channels available for analog input. Operates from 4V to 5.5V, with a maximum power dissipation of 1W and an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C773-I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.07inch
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
0.406inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
6
Number of Bits
8
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
5V
Package Quantity
47
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.212inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C773-I/SS Datasheet
Download the complete datasheet for Microchip PIC16C773-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

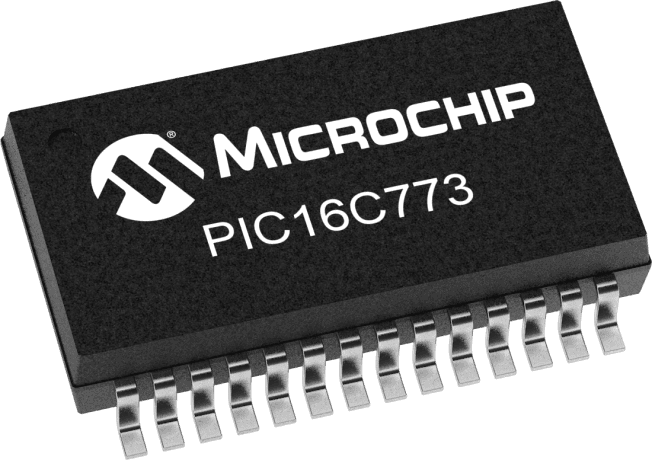

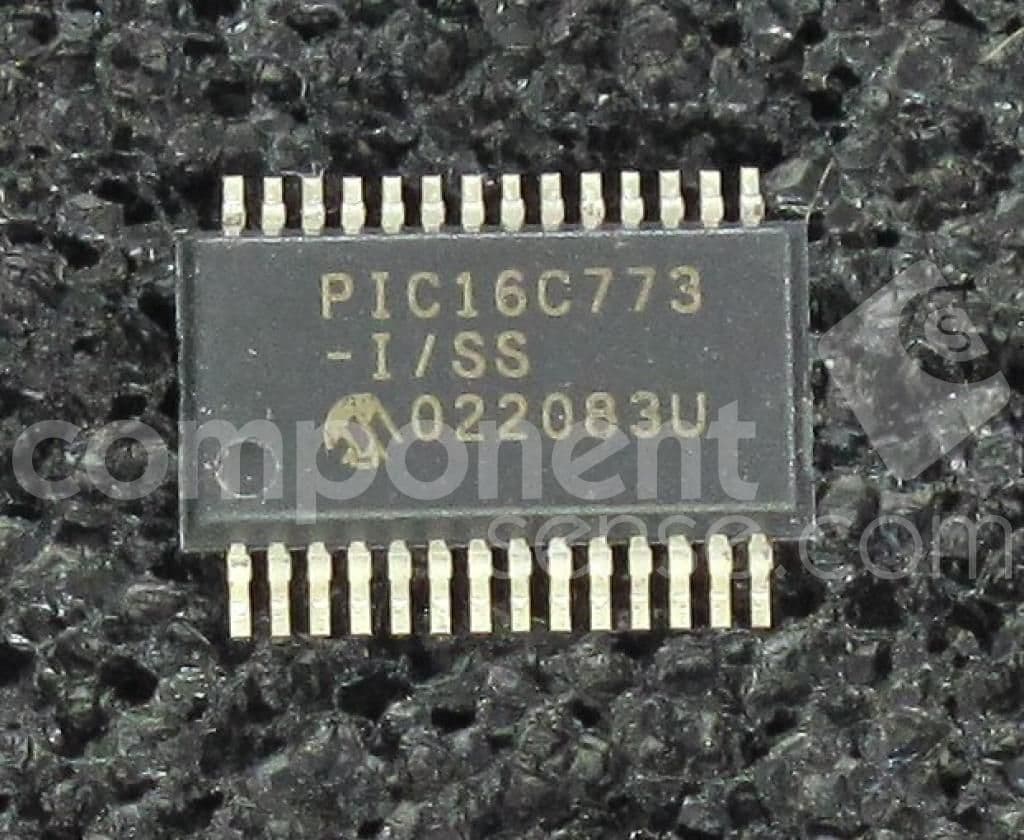

Product Images
