8-bit RISC microcontroller featuring a 20MHz clock speed and 7KB of OTP/EPROM memory. Offers 22 programmable I/O pins, 256 bytes of RAM, and multiple communication interfaces including I2C, SPI, and UART. Includes peripherals such as Brown-out Detect, POR, PWM, and a Watchdog Timer. Designed for surface mounting in an SSOP-28 package, operating from a 4V to 5.5V supply.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C773T/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
EPROM, , OTP
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C773T/SS Datasheet
Download the complete datasheet for Microchip PIC16C773T/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

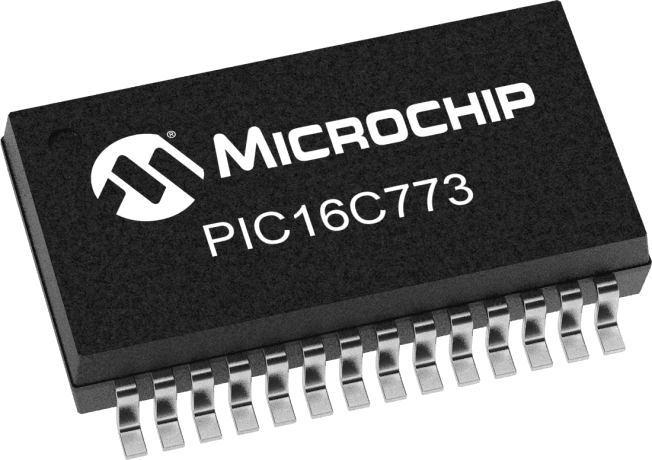

Product Images
