8-bit RISC microcontroller featuring 20MHz operation and 14KB EPROM/OTP memory. This surface-mount device offers 25 programmable I/Os, 3 timers/counters, and 1 PWM channel. Integrated peripherals include I2C, SPI, UART, Brown-out Detect/Reset, POR, WDT, and LCD support. Operates from 4V to 5.5V with a maximum power dissipation of 1W and an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16C926-I/L technical specifications.
General
Access Time
20us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
EPROM, , OTP
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
25
Number of Programmable I/O
25
Number of PWM Channels
1
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
19
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
336B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C926-I/L Datasheet
Download the complete datasheet for Microchip PIC16C926-I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

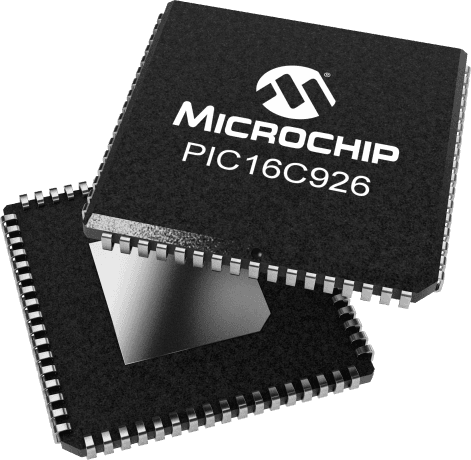

Product Images
