8-bit RISC microcontroller featuring an 8-bit address and data bus, operating at up to 48MHz. This through-hole mounted PDIP package offers 11 programmable I/Os, 1KB RAM, and 14KB FLASH memory. Integrated peripherals include USB, I2C, SPI, UART, USART, LIN interfaces, 2 PWM channels, 3 timers/counters, and Brown-out Detect/Reset, POR, WDT. Designed for a 2.5V to 5.5V supply range, it operates from -40°C to 85°C and boasts a low supply current of 350uA.
Frequency48MHz
PackagePDIP
Current350uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F1454-I/P technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 48MHz |
| Height | 0.195inch |
| Interface | USB, I2C, SPI, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 19.69mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Number of I/Os | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 11 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Supply Current | 350uA |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1454-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1454-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

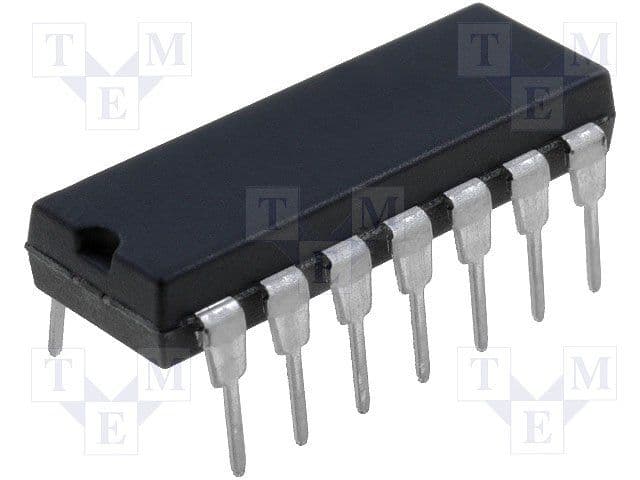

Product Images
