8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 48MHz. This FLASH memory microcontroller offers 14KB of program memory and 1024B of RAM, with 11 programmable I/O pins. Integrated peripherals include I2C, SPI, USB, UART, USART, LIN interfaces, 5 ADC channels, and 2 PWM channels. Designed for a 2.5V to 5.5V supply voltage, it operates within a -40°C to 85°C temperature range and is RoHS compliant.
Frequency48MHz
PackagePDIP
Current350uA
Quick Jump:
Technical Specifications
Microchip PIC16F1455-I/P technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
0.195inch
Interface
I2C, SPI, USB, UART, USART, LIN
Lead Free
Lead Free
Length
19.69mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of ADC Channels
5
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
11
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
2
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1024B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
350uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1455-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1455-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

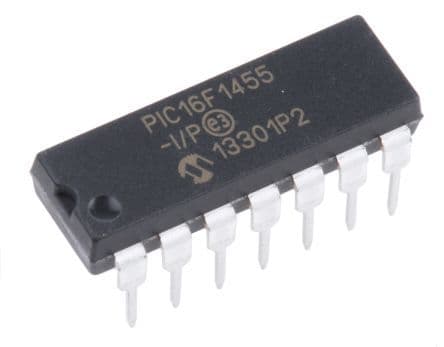

Product Images
