8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus. Includes I2C and SPI interfaces, 8 ADC channels, and 11 I/O pins. Supports internal oscillator and peripherals like PWM and WDT. Packaged in a 3x3mm QFN with a height of 0.85mm, operating from 2.5V to 5.5V.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1503-E/MG technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.85mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
3mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
3.5KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of ADC Channels
8
Number of I/Os
11
Number of I2C Channels
2
Number of Programmable I/O
12
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1503-E/MG Datasheet
Download the complete datasheet for Microchip PIC16F1503-E/MG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

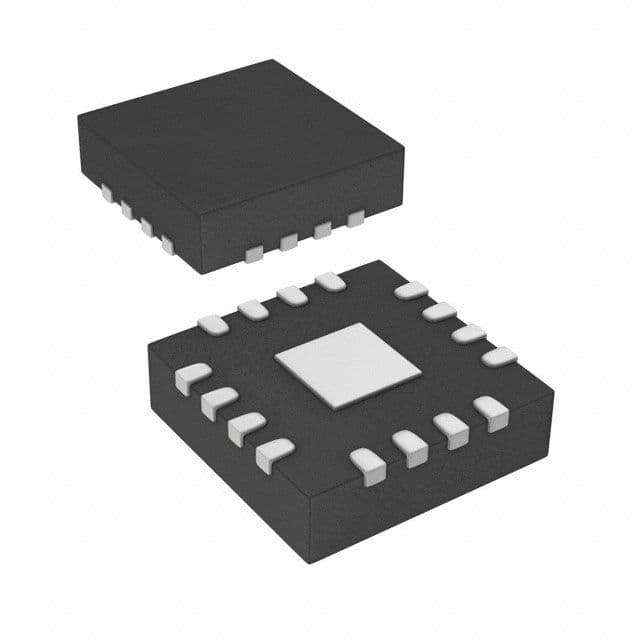

Product Images
